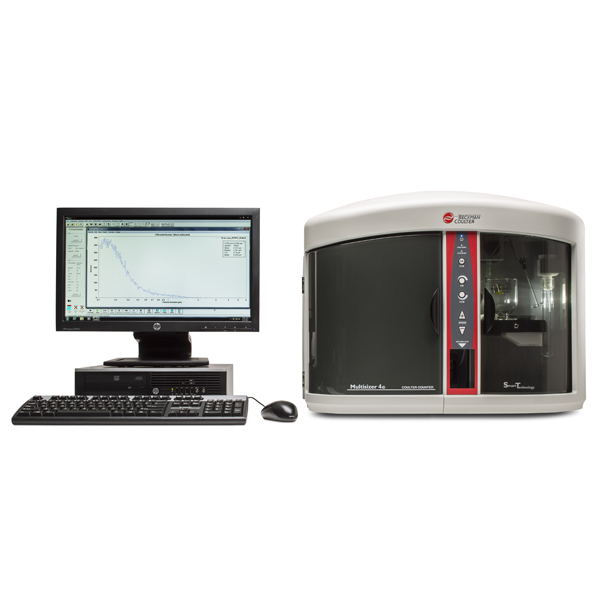

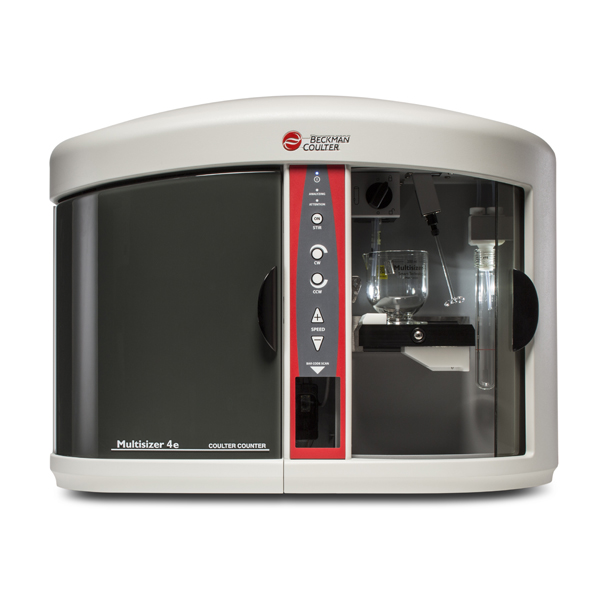

Multisizer 4e
Conteggio e determinazione della dimensione delle particelle con risoluzione estremamente elevata
Grazie al processore digitale di Multisizer 4, il metodo classico di misura dell'impedenza (ISO 13319), inventato da Wallace Coulter nel 1953, è stato completamente convertito in digitale. Questo permette di raggiungere velocità di registrazione superiori a 500.000 impulsi per analisi.
Un dispositivo innovativo consente la distribuzione dei volumi analitici per la misura. Il volume misurato è determinato con precisione per mezzo di una pompa a membrana, e un schema funzionale permette il controllo dello strumento
In questo modo i vantaggi del metodo di misura dell'impedenza, come l'osservazione delle particelle in tre dimensioni (indipendentemente dalla forma e dal colore), e la risoluzione estremamente elevata si accompagnano a un utilizzo moderno con procedure operative standard.
Il software Multisizer 3, conforme a 21 CFR Parte 11, offre anche numerose altre funzioni di garanzia di qualità.
Caratteristiche
Caratteristiche dell'apparecchio
- Intervallo di misura: da 0,4 nm a 1.600 μm (diametro)
- Intervallo dinamico: da 2 a 80% dell'apertura della provetta (da 2 a 60%)
- Velocità di conteggio massima: 500.000 particelle
- Volume di analisi minimo: 50 µl o 0,1 s
Processore digitale di impulsi
- Registrazione completa di tutti gli impulsi in forma digitale
- Analisi della distribuzione e degli impulsi in larghezza e in altezza
- Registrazione di 500.000 impulsi in tempo reale (tracciati)
- Ricalcolo ulteriore della distribuzione delle particelle
Software
- Visualizzazione della distribuzione in base a numero, superficie e volume (valore assoluto, /ml, %)
- Utilizzo di cursori orizzontali, verticali e di intervallo
- Comando automatico per le procedure operative standard (SOP)
- Visualizzazione diretta degli impulsi (larghezza, altezza, numero)
- Conformità a 21 CFR Parte 11, programma V-Check per SQ, DQ, OQ
Applicazioni
- Pigmenti, abrasivi, emulsioni, materiali cromatografici, polimeri, toner, batteri
- vaccini, depositi su filtro, lieviti, mosti, biotecnologie, contaminazioni dell'acqua
- principi attivi, polvere di ceramica, varie cellule biologiche, cosmetici
Explore Multisizer 4e Models
Documenti tecnici
Multisizer 4e Particle Analyzer
What is the Coulter principle for particle analysis?
The Coulter principle is a widely used method for particle size and count analysis based on electrical resistance. It works by suspending particles in a conductive liquid and passing them one by one through a small aperture with an electrical current applied.
When a particle passes through the aperture, it displaces its own volume of electrolyte, causing a momentary change in electrical impedance. This change is directly proportional to the particle’s volume, allowing precise measurement of particle size and concentration.
The Coulter principle is commonly used in particle characterization, cell counting (e.g., blood cells), pharmaceuticals, biotechnology, and industrial quality control because it provides accurate, reproducible, and number-based particle measurements.
What's a good way to measure particle size distribution?
A reliable way to measure particle size distribution is Electrical Sensing Zone (ESZ) analysis, also known as the Coulter principle. This method measures particles individually as they pass through a small aperture, delivering high-resolution, number-based particle size distributions across a wide size range.
Instruments like the Multisizer 4e Particle Analyzer apply this technique to provide accurate, reproducible particle sizing and counting for applications in pharmaceuticals, biotechnology, industrial materials, and research. The Multisizer 4e Particle Analyzer is especially effective when precise control, traceability, and true particle-by-particle measurement are required—making it a gold standard for particle characterization.
What is the difference between a Coulter counter and flow cytometry for cell counting?
A Coulter counter counts and sizes cells using the Coulter principle (Electrical Sensing Zone) by measuring changes in electrical impedance as each cell passes through a small aperture. This provides accurate, label-free total cell counts and true cell volume measurements, independent of cell color, shape, or optical properties.
Flow cytometry, by contrast, counts cells using light scatter and fluorescence as cells pass through a laser. It enables multiparametric biological analysis (e.g., surface markers, viability, phenotype) but typically requires fluorescent labeling and is more sensitive to optical and staining variability.
How to count particles regardless of their shape or color?
The most effective way to count particles regardless of shape, color, or optical properties is by using Electrical Sensing Zone (ESZ) technology, also known as the Coulter principle. This method counts particles individually by measuring changes in electrical impedance as each particle passes through a small aperture filled with a conductive liquid.
Because the signal is based on particle volume, not light scattering or imaging, ESZ analysis delivers accurate, label-free particle counting that is independent of particle shape, transparency, refractive index, or color. This makes it ideal for heterogeneous samples in biotechnology, pharmaceuticals, industrial materials, and quality control.
Instruments such as the Multisizer 4e Particle Analyzer apply this technology to provide precise, reproducible particle counts and size distributions across a wide size range.
