Citofluorimetro Cytoflex LX
Il citofluorimetro CytoFLEX LX è un'espansione della piattaforma CytoFLEX. Questo modello amplia le possibilità di ricerca fino a sei laser e 21 parametri di colore. Sei laser separati spazialmente consentono la creazione di pannelli attraverso lo spettro di fluorescenze riducendo il cross talk e la sovrapposizione spettrale.
- Sono disponibili due serie, UV-Viola-blu-Giallo Verde-Rosso-IR (U-V-B-Y-R-I) e Near UV-Viola-Blu-Giallo Verde-Rosso-IR (N-V-B-Y-R-I)
- Strumenti con solo quattro laser attivati e 14 parametri di colore disponibili con l'opzione di attivare laser e colori aggiuntivi con l'acquisto di una chiave di attivazione
- Per applicazioni ad elevato flusso di lavoro è disponibile un modulo opzionale caricatore di piastre
- Software conforme alla norma 21 CFR Part 11 per l'utilizzo in ambienti regolamentati
Caratteristiche
Sensibilità ottimale
- L’unione unica di tecnologie innovative offre eccezionali capacità di rilevamento
- Ampio range dinamico per risolvere popolazioni Dim e Bright nello stesso campione
- Utilizza il Violet Side Scatter per rilevare le nanoparticelle
Piattaforma Versatile
- Acquistare subito il numero di parametri necessari
- Aggiungere altri parametri acquistando una chiave di attivazione
- Include il set completo di filtri bandapassante, disponibili anche filtri non standard per una flessibilità ancora maggiore
Minor manutenzione
- I laser, l'ottica e la cella di flusso sono tutti montati su un tavolo isolato da vibrazioni, mantenendo l'allineamento ottico
- Sistema fluidico a bassa pressione
- La manutenzione preventiva può essere completata dall'utente, non è necessaria alcuna visita di assistenza
Automazione
- Caricatore di campioni con piastra a 96 pozzetti opzionale
- API (Application Programming Interface) consente ad un software esterno di controllare lo strumento
- Per l'acquisizione automatica dei campioni e l'elaborazione dei dati, integrabile con il preparatore Biomek i-Series
Explore CytoFLEX LX Models
Documenti tecnici
Related Parts
CytoFLEX Daily IR QC Fluorospheres
CytoFLEX Daily IR Fluorospheres is a suspension of fluorescent microspheres used for daily verification of the IR laser containing CytoFLEX S and CytoFLEX LX Flow Cytometers optical alignment and fluidics system.
CytoFLEX Sheath Fluid, 1 x 10 L
A nonionic, non-fluorescent, and azide-free sheath fluid for use on CytoFLEX flow cytometers.
LAB EQUIP,TEST TUBE, 12 X 75 MM, POLYPROPYLENE, BLUE (250/PK)
Sample Tubes for FC 500 and EPICS™ XL™ Flow Cytometers.
CytoFLEX LX Upgrade from N3-V5-B3-Y5-R3-I0 to N3-V5-B3-Y5-R3-I2

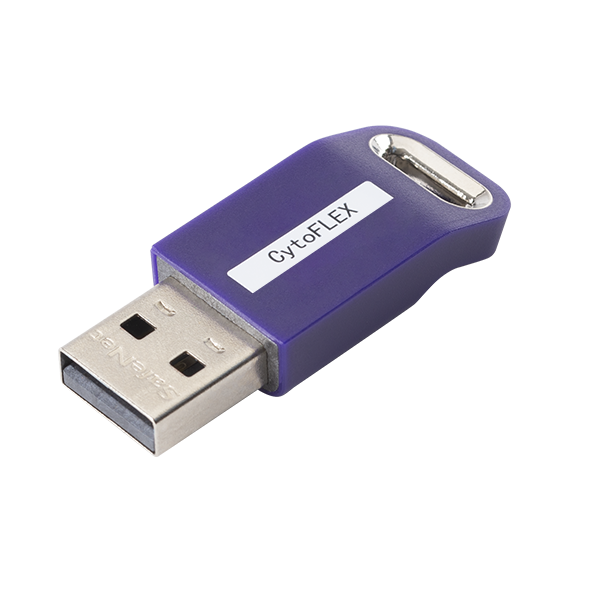

Activation key to upgrade the CytoFLEX LX N3-V5-B3-Y5-R3-I0 flow cytometer with additional parameters. Upon installation the instrument will have 6 active lasers (375 nm, 405 nm, 488 nm, 561 nm, 638 nm, 808 nm) and 21 channels for fluorescence detection in the N3-V5-B3-Y5-R3-I2 configuration.
CytoFLEX LX Upgrade from U3-V5-B3-Y3-R0-I0 to U3-V5-B3-Y5-R3-I0
Activation key to upgrade the CytoFLEX LX U3-V5-B3-Y3-R0-I0 flow cytometer with additional parameters. Upon installation the instrument will have 5 active lasers (355 nm, 405 nm, 488 nm, 561 nm, 638 nm) and 19 channels for fluorescence detection in the U3-V5-B3-Y5-R3-I0 configuration.
CytoFLEX LX Upgrade from U3-V5-B3-Y0-R3-I0 to U3-V5-B3-Y5-R3-I2
Activation key to upgrade the CytoFLEX LX U3-V5-B3-Y0-R3-I0 flow cytometer with additional parameters. Upon installation the instrument will have 6 active lasers (355 nm, 405 nm, 488 nm, 561 nm, 638 nm, 808 nm) and 21 channels for fluorescence detection in the U3-V5-B3-Y5-R3-I2 configuration.
CytoFLEX LX Upgrade from U3-V5-B3-Y3-R0-I0 to U3-V5-B3-Y5-R3-I2
Activation key to upgrade the CytoFLEX LX U3-V5-B3-Y3-R0-I0 flow cytometer with additional parameters. Upon installation the instrument will have 6 active lasers (355 nm, 405 nm, 488 nm, 561 nm, 638 nm, 808 nm) and 21 channels for fluorescence detection in the U3-V5-B3-Y5-R3-I2 configuration.
CytoFLEX LX Upgrade from U3-V5-B3-Y5-R3-I0 to U3-V5-B3-Y5-R3-I2
Activation key to upgrade the CytoFLEX LX U3-V5-B3-Y5-R3-I0 flow cytometer with additional parameters. Upon installation the instrument will have 6 active lasers (355 nm, 405 nm, 488 nm, 561 nm, 638 nm, 808 nm) and 21 channels for fluorescence detection in the U3-V5-B3-Y5-R3-I2 configuration.
CytoFLEX LX Upgrade from U3-V5-B3-Y0-R3-I0 to U3-V5-B3-Y5-R3-I0
Activation key to upgrade the CytoFLEX LX U3-V5-B3-Y0-R3-I0 flow cytometer with additional parameters. Upon installation the instrument will have 5 active lasers (355 nm, 405 nm, 488 nm, 561 nm, 638 nm) and 19 channels for fluorescence detection in the U3-V5-B3-Y5-R3-I0 configuration.
CytoFLEX LX Flow Cytometer FAQs
What is the CytoFLEX LX Flow Cytometer used for?
The CytoFLEX LX Flow Cytometer is designed for advanced flow cytometry applications requiring high-parameter analysis and flexible configuration options.
How many color parameters can the CytoFLEX LX Analyzer detect?
The system supports up to 21 color parameters, depending on configuration.
How does the CytoFLEX LX Analyzer support complex panel design?
Six spatially separated lasers allow users to distribute fluorochromes across the spectrum, helping reduce cross talk and making it easier to design high-parameter panels.
What types of research applications is the CytoFLEX LX Analyzer suited for?
The system is designed to support a wide range of research applications that benefit from multi-parameter analysis and flexible laser configurations.
What configuration options are available for the CytoFLEX LX Analyzer?
Two series are available: UV-Violet-Blue-Yellow Green-Red-IR (U-V-B-Y-R-I) and Near UV-Violet-Blue-Yellow Green-Red-IR (N-V-B-Y-R-I).
What is the minimum configuration available for the CytoFLEX LX Analyzer?
Instruments are available with as few as four activated lasers and 14 color parameters.
Can the CytoFLEX LX Analyzer be upgraded over time?
Yes, additional lasers and detection channels can be activated as needed through the purchase of activation keys.
How does the CytoFLEX LX Analyzer support evolving research needs?
The platform allows users to start with a smaller configuration and expand capabilities over time, supporting changing experimental requirements.
Does the CytoFLEX LX Analyzer support high-throughput workflows?
Yes, an optional plate loader module is available for higher throughput applications.
Can the CytoFLEX LX Analyzer be integrated into automated workflows?
The system can be used with an optional plate loader and integrated with other instruments to support automated sample processing and data acquisition workflows.
What software is used with the CytoFLEX LX Analyzer?
All instruments in the CytoFLEX platform utilize CytExpert for CytoFLEX Analyzer Acquisition and Analysis Software.
Is the software suitable for regulated environments?
Yes, the software includes tools to support 21 CFR Part 11 compliance.
What makes the CytoFLEX LX Analyzer different from other systems in the platform?
The CytoFLEX LX expands the platform’s capabilities by offering higher- parameter configurations and additional laser options.
Can the CytoFLEX platform be upgraded to spectral flow cytometry?
Yes. Compatible CytoFLEX platforms can be upgraded with the CytoFLEX mosaic Spectral Detection Module, allowing researchers to add spectral flow cytometry capabilities without replacing their existing instrument.
